GP-6 4 Way Float Top Table with Floor-to-Wall Non-Rotate Tube Stand
MULTI-FWFTT-G

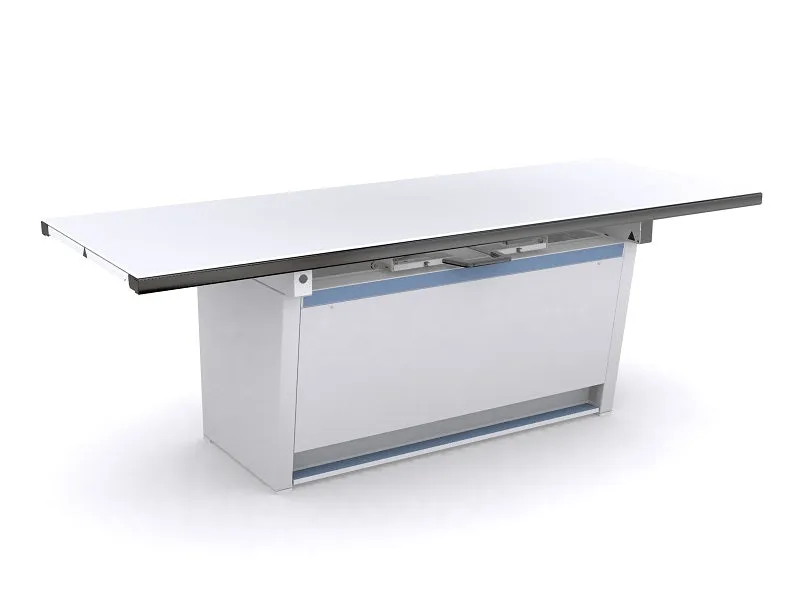

Four-Way Float Top Table, Fixed Height, Multirad
- 86.6" x 32.4" float top table (2200mm x 825mm)
- Table top supports patients up to 661 lbs (300 kgs)
- Longitudinal table top travel 35" ( /-17.5") (900mm)
- Transverse table top travel 9" ( /-4.5") {230mm)
- Table top to Film Distance: 4" (102mm)
- Bucky travel: 20.3" (581mm)
- Table top to floor distance 30.3" (769mm)
- Electromagnetic brakes
- Heavy duty grid cabinet with heavy duty manual cassette tray
- 103 line, 10:1 ratio, 34-44" focal range grid
13-RA-23/S105-8

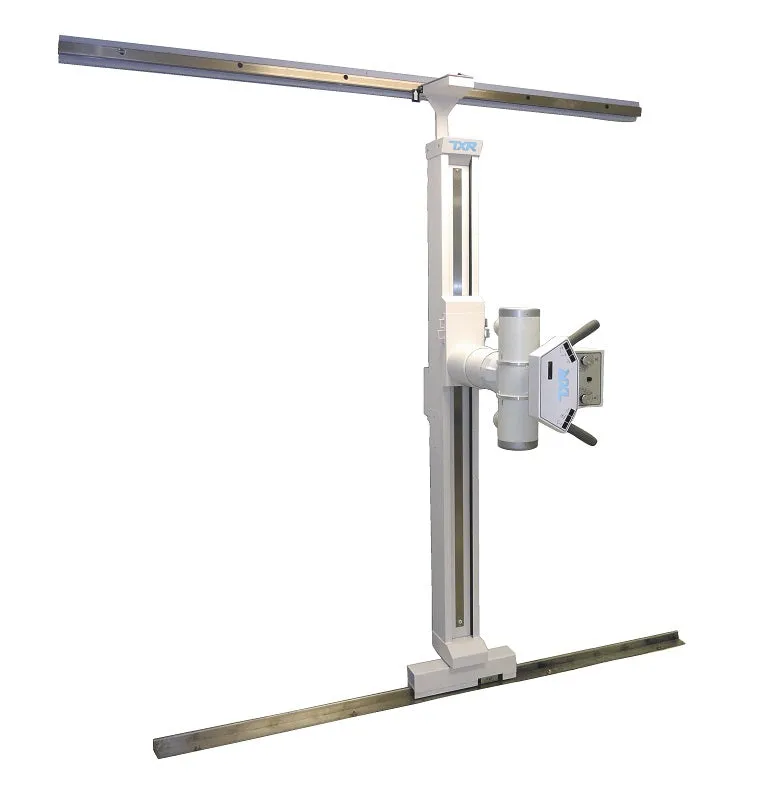

Rotate Floor-to-Wall Tube Stand with Transverse Travel
- l-5" Transverse travel
- 360° Column Rotation, mechanical detent
- Vertical travel 13.5"-76.8"
- 39.2'' wall to focal spot at detent position
- Platform tube mount; Angulation dial
- Magnetic locks for longitudinal, transverse, vertical & tube rotation
- Fits in ceiling heights of 93"-120"
- 75.7" Longitudinal Travel with 8' floor track
- UL Classified, operates from 24 VDC
13-BF7-GC/S109
Floor-to-Wall Non-Rotate Tube Stand
- Vertical travel 11.75" - 76.75"
- 23" focal spot to front of column
- Platform tube mount, angulation dial and operator handles
- Manual lock for tube angulation
- Electric lock for longitudinal and vertical travel
- Fits in ceiling heights of 88"-121•
- 75.2" Longitudinal travel with 8' floor track
- UL Classified, operates from 24 VDC
13-BF7-GC/S109

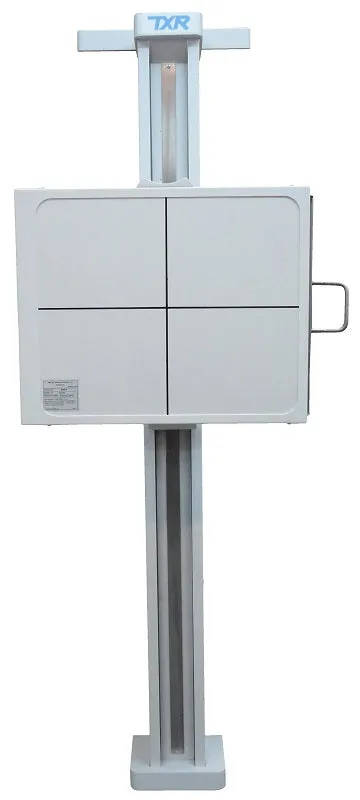

Wall Stand with 17 x 17" Grid Cabinet
- Floor-to-Wall Mount, Counterbalanced Column
- Minimum ceiling height: 86" from floor
- Vertical Travel: 9-3/4" to 72-3/4"
- Grid Cabinet with Heavy Duty Tray and 10:1, 103 fine grid
- Electric locks (24 voe 2 Amp required) power supply included
- Operates on 120 VAC
E7239FX
X-Ray Tube - 140,000 heat unit, 1.0-2.0mm focal spots, 90° horn angle
CML-125-0001-C
Collimator - Certified Manual Collimator with laser light, LED, 125kVP
10539-20
Cables - pair, 20' long
*This product has been permanently discontinued.
Replacement products available.
